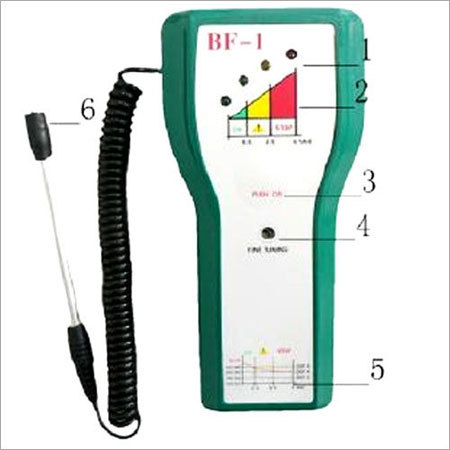

Brake Fluid Testers We offer a wide range of automotive brake fluid quick testers ADD7703 that helps the technicians in testing whether it is necessary to change the brake oil. Our range helps in showing the water content. Panel Illustration:
- Indicator
- Water content
- Work button (push on button)
- Fine tuning
- Temperature-resisting curve
- Probe
How to Use:
- After cleaning the probe, put it in dry air or immerse it into new brake fluid.
- Press down the work button for 3-5 seconds continuously, and then turn the fine tuning clockwise until the second green indicator lights turn on
- Then turn the fine tuning counter-clock wise until the second green indicator puts out
- Now it can be used to test the brake fluid
- Immerse the probe into the brake fluid, and press down the work button for a few seconds
- Judge the brake fluid state by indicator light
- All the green lights indicate the brake fluid is fine and the water content is below 0.5%
- Yellow light indicates the fluid is not so good and the water content is above 0.5%
- Red light with buzzer sound indicates the brake fluid is very bad and the water content is above 2.5%
|
